Must-Read for Beginners: A Complete Guide to Installing a Solar Inverter (From Preparation to Inspection, Pitfall Avoidance Tips)

I. Pre-Installation Essentials: 3 Core Prerequisites (That Determine Installation Success)

1. Clarify Inverter Type and Applicable Scenarios

2. Confirm Installation Environment (Meet These 2 Core Conditions)

• Temperature Requirements: The typical operating temperature range is -25℃~60℃. Avoid direct sunlight (install a sunshade if necessary) and keep the inverter away from heat sources (e.g., air conditioner outdoor units, radiators).
• Protection Requirements:
  • Indoor Installation: Choose a dry, well-ventilated room (such as a balcony or storage room) that is away from water sources and corrosive gases.
  • Outdoor Installation: Use an inverter with an IP65 or higher protection rating. Install it at least 1.2 meters above the ground to prevent water immersion.

3. Prepare Tools and Materials (Beginner’s Checklist)

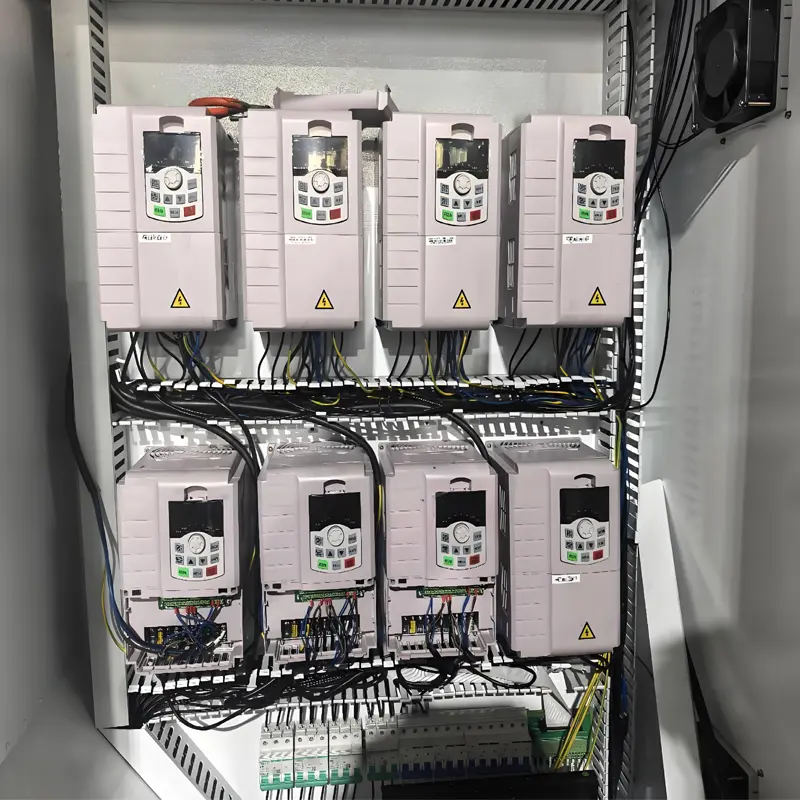

II. Installation Steps: 7 Safe Operations (Follow the Order—No Skipping!)

Step 1: Secure the Inverter Mounting Bracket

1. Mark drill holes on the wall or floor according to the inverter’s dimensions (ensure the wall is load-bearing; avoid hollow walls that cannot support the weight).
2. Drill holes, insert expansion screws, and secure the mounting bracket (the bracket must be level, with an error of no more than ±2mm—this prevents damage to internal components caused by inverter tilting).
3. Hang the inverter on the bracket and lock it in place with screws (refer to the manual for torque values, which are usually 4-6N·m).

Step 2: Connect the DC Side (Solar Panels to Inverter)

1. Locate the inverter’s DC input port (usually labeled “PV IN”, often a waterproof connector or terminal block).
2. Strip the insulation from both ends of the PV cable (DC cable) to a length of approximately 10mm (avoid excessive exposure to prevent short circuits).
3. Connect by matching positive and negative poles: Connect the “+” terminal of the inverter’s DC port to the solar panel’s positive cable, and the “-” terminal to the negative cable (beginners can use labels to distinguish the poles and avoid reverse connection, which could burn the inverter).
4. Tighten the terminal screws (follow the torque requirements in the manual, usually 2-3N·m). For outdoor connections, use a waterproof junction box and seal it properly.

Step 3: Connect the AC Side (Inverter to Grid/Loads)

1. Locate the inverter’s AC output port (labeled “AC OUT”, usually a three-phase or single-phase terminal block).
2. Confirm the grid voltage (220V single-phase for residential use, 380V three-phase for commercial use) and select AC cables of the appropriate specification.
3. Follow this connection sequence: Inverter AC port → Circuit breaker → Grid distribution box (or electrical load). Clearly distinguish between the “live wire (L)”, “neutral wire (N)”, and “ground wire (PE)”. The ground wire must be reliably grounded (ground resistance ≤4Ω; otherwise, there is a risk of electric shock).
4. Tighten the terminals to ensure secure contact (loose connections can cause overheating and damage).

Step 4: Install Circuit Breakers and Protection Devices

• DC Side Circuit Breaker: Installed between the solar panels and the inverter. Select a breaker with a rated current that is 1.2 times the maximum output current of the solar array; it is used to cut off DC power when needed.
• AC Side Circuit Breaker: Installed between the inverter and the grid. Select a breaker with a rated current that is 1.2 times the inverter’s rated output current to prevent grid-side overloads.
• Ground Protection: The inverter housing must be connected to the ground wire (use a yellow-green double-insulated wire) and directly connected to the ground bar.

Step 5: Inspect Wiring (A Must-Do for Beginners! Avoid Fatal Mistakes)

1. Check: Verify that there are no reversed positive/negative poles, that ground connections are secure, and that no cable insulation is damaged.
2. Test: Use a multimeter to check the DC side voltage (it should match the solar array’s open-circuit voltage, e.g., around 300V) and ensure there are no AC side short circuits (the resistance between live/neutral wires and the ground wire should be infinite).
3. Pull: Gently pull the cables to confirm that no terminals are loose.

Step 6: Power-On Debugging (Operate Phase-by-Phase—Do Not Switch On Directly)

1. First, turn on the DC side switch: Open the solar array combiner box switch. The inverter display should show “normal DC voltage” (with no error codes).
2. Then, turn on the AC side switch: Close the grid-side circuit breaker. The inverter will start self-testing (this takes about 3-5 minutes), and the display will show “standby” or “grid-connecting”.
3. Confirm successful grid connection: After the self-test is complete, the inverter will display “grid-connected operation”, and the output power will match the solar panel’s power generation (e.g., it can reach the rated power at midday on sunny days).

Step 7: Secure Cables and Organize the Site

1. Use clamps to secure DC and AC cables along the wall or bracket—this prevents cables from hanging and pulling on the ports.
2. Organize excess cables (when coiling the cables, the diameter should not be less than 10 times the cable diameter to avoid damaging the internal copper wires).
3. Clean the installation site and keep the inverter manual, wiring diagram, and other documents (these will be needed for future maintenance).

III. Pitfall Avoidance Guide for Beginners: 5 Common Mistakes

1. Skipping Grounding or Having Poor Grounding: The ground wire is the last line of defense against electric shock. Poor grounding may cause the inverter housing to become live, leading to safety accidents.
2. Reversing Positive/Negative Poles: Reversed connections on the DC side will directly burn the inverter’s internal components. Always use a multimeter to test the solar panel’s poles before installation.
3. Using Undersized Cables: Thin cables cause high resistance and overheating, which may even start fires (recommended specifications: DC cables ≥2.5mm²; AC cables ≥4mm²—calculate based on actual current for accuracy).
4. Ignoring Ventilation and Heat Dissipation: Inverters generate heat during operation. Installing them in enclosed spaces will trigger over-temperature protection and cause shutdowns, reducing power generation efficiency.
5. Operating with Live Electricity: Always power off before any wiring work—especially on the DC side (solar panels generate electricity continuously under light, and residual voltage may remain even if the switch is off).

IV. Post-Installation Inspection: 3 Key Checkpoints

1. Operation Status Check: Observe the inverter display to ensure there are no error codes (e.g., “E01” indicates DC overvoltage, “E02” indicates AC overvoltage) and that the output power is stable.
2. Cable Temperature Check: After the inverter has been operating for 1 hour, touch the DC and AC cables—they should not feel excessively hot (the normal temperature should be ≤60℃).
3. Data Monitoring Check: If the inverter supports APP connectivity, bind the device and check data such as power generation, voltage, and current to ensure consistency with actual conditions.

V. Important Reminder: Seek Professional Help for These Scenarios

• The installation involves high-altitude work (e.g., inverters for rooftop solar panels);
• Grid connection requires an application to the power company (grid-tied inverters must pass power company inspection; unauthorized grid connection is illegal);
• Persistent errors, overheating cables, or zero power generation occur after installation.
