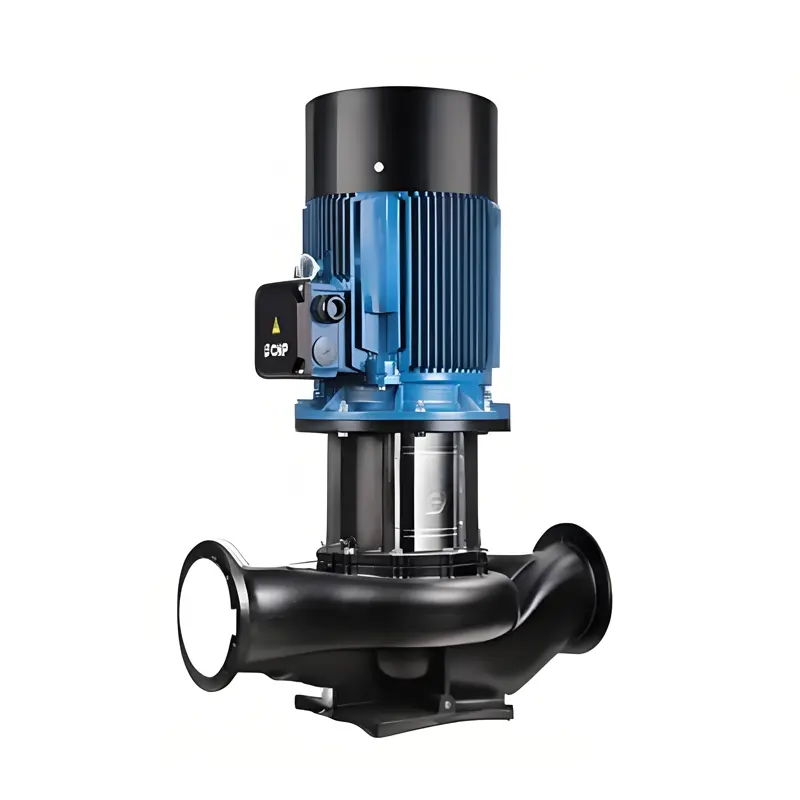

Causes and Solutions for Overheating of Water Pump Motors
As the core power source of pump equipment, the normal operating temperature of a water pump motor is usually between 60-80°C (shell temperature). If it exceeds 90°C, it is considered significantly overheated, which not only accelerates component aging but may also trigger built-in protection mechanisms (such as thermal relay tripping) leading to shutdown or even motor burnout. This article focuses on motor faults themselves, analyzes common causes of overheating in water pump motors and targeted solutions, while addressing practical issues such as “overheating protection triggering”.
I. Motor Overload: Load Exceeds Rated Capacity, Causing Current Surge and Overheating
Motor overload is the most common cause of overheating. Essentially, when the output power exceeds the rated value, the current increases and winding heating intensifies.
1. Core Causes
- Pump Blockage: The impeller is stuck by debris (such as stones, fibers), or bearings are worn, or bushings are seized, causing a sudden increase in the motor’s rotational resistance and forcing it to output excessive torque.
- Mismatched Head: The actual operating head is much lower than the pump’s rated head, resulting in excessive flow (“high flow, low head” operation), and the motor load exceeds the rated value (for example, a pump with a rated head of 30 meters operating at 10 meters may have a flow rate increased by 1.5 times, with a corresponding surge in current).
- Abnormal Voltage: A low power supply voltage (e.g., 10% below the rated voltage) will cause the motor speed to drop, reduce electromagnetic conversion efficiency, and increase current (voltage is inversely proportional to current; lower voltage leads to higher current). Unbalanced three-phase voltage (with a difference exceeding 5%) can also cause excessive current in one phase of the windings.
2. Solutions
- Check for Blockages: After cutting off the power, manually rotate the motor shaft. If it feels heavy or stuck, disassemble the pump to clean debris from the impeller and replace worn bearings or bushings (bearings must be replaced when radial clearance exceeds 0.1mm).
- Adjust Operating Conditions: Regulate flow through valves (close the outlet valve to increase pipeline resistance and reduce flow) or replace with a pump model matching the actual head (e.g., replace a high-head pump with a low-head one) to ensure the operating point is within the pump’s efficient zone (flow ≤ 110% of rated flow).
- Stabilize Power Supply: Install a voltage regulator to compensate for voltage fluctuations. Three-phase motors should be equipped with a voltage balancer to ensure the voltage difference between phases is ≤ 3%. Regularly check if the power line diameter is sufficient (an undersized wire diameter will cause excessive line voltage drop). It is recommended to use copper core wires, with a cross-sectional area matching the motor power (e.g., a 1.5kW motor requires at least 1.5mm² wire).
II. Failure of Cooling System: Heat Cannot Be Dissipated in Time, Accumulating and Causing Overheating
Heat generated during motor operation is mainly dissipated through the shell, cooling fan, and heat sinks. Failure of any part will cause heat accumulation.
1. Core Causes
- Fan Malfunction: Broken or loose fan blades, or blades detached from the motor shaft, resulting in insufficient cooling air volume; the fan cover is blocked by dust and debris, obstructing the ventilation channel.
- Clogged Heat Sinks: Long-term operation in dusty, humid environments causes oil, dust, or moisture condensation to accumulate between heat sinks, significantly reducing heat exchange efficiency (especially in high-temperature summer environments, cooling capacity can decrease by more than 40%).
- High Ambient Temperature: The motor is installed in an enclosed space (such as a small control cabinet) or the ambient temperature exceeds 40°C (such as locations near boilers or ovens), reducing the cooling temperature difference and preventing natural heat dissipation.
2. Solutions
- Repair Cooling Components: Replace damaged fan blades and re-fix loose fans; clean the fan cover and heat sinks (use a high-pressure air gun to blow or a soft brush to clean; use a neutral detergent to wipe off heavy oil stains) to ensure unobstructed ventilation.
- Improve Cooling Environment: Move the motor to a well-ventilated location away from direct sunlight. In high ambient temperatures, install an axial flow fan for forced ventilation (fan air volume must be ≥ 1.2 times the air volume required for motor cooling) or add cooling fins to the shell to increase heat dissipation area.
III. Damaged Winding Insulation: Short Circuit or Ground Fault, Causing Local Current Surge
Aging or damaged insulation layers of motor windings (copper wires) can cause short circuits or ground faults, leading to abnormal local current increases and substantial heat generation.
1. Core Causes
- Insulation Aging: Long-term motor overload operation or humid environments cause the insulation layer (enamel on enameled wires) to become brittle and crack due to high temperatures, oxidation, or moisture, resulting in short circuits between adjacent windings (turn-to-turn short circuits) or grounding between windings and the motor shell (ground short circuits).
- Mechanical Damage: Improper operation during motor disassembly and assembly (such as hitting the end cover) causes wear on winding leads; or bearing wear leads to rotor eccentricity, friction with the stator (“stator rubbing”), scratching the winding insulation layer.
2. Solutions
- Detect Fault Points: Use a megohmmeter (shake meter) to measure winding insulation resistance, which should normally be ≥ 0.5MΩ (with a 500V megohmmeter). If it is lower than this value or 0, it indicates a short circuit or ground fault. Disassemble the motor to inspect the windings; if local scorching or blackening is found, that is the fault point.
- Repair or Rewind: Minor turn-to-turn short circuits can be repaired by applying insulating paint; for severe short circuits or ground faults, the windings must be replaced (rewinding must strictly follow the original number of turns, wire diameter, and wiring method to ensure parameter matching). After replacing the windings, they must be dipped in paint and dried to enhance insulation performance.
IV. Triggering of Protection Mechanisms: “Self-Protection” During Overheating, Requiring Root Cause Investigation First
Modern water pump motors are mostly equipped with built-in overheating protection devices (such as PTC thermistors, thermal relays). When the winding temperature exceeds the set threshold (usually 130-150°C), the power supply is automatically cut off to prevent motor burnout.
1. Trigger Causes
The triggering of protection mechanisms essentially means the motor is in a dangerously overheated state, usually due to the continuous deterioration of the three aforementioned issues (overload, cooling failure, winding faults). For example, long-term excessive current due to overload gradually increases the winding temperature to the protection threshold; after the cooling fan stops, the winding temperature can soar by more than 50°C within 10 minutes, directly triggering protection.
2. Resolution Steps
- Investigate Before Resetting: After protection is triggered, do not forcibly reset and power on immediately. Wait for the motor to cool to below 60°C (approximately 30-60 minutes), then investigate as follows:
-
- Check for overload (use a clamp meter to measure current; if it exceeds 1.1 times the rated current, it is overloaded);
-
- Inspect the cooling system (whether the fan is running, whether heat sinks are blocked);
-
- Measure winding insulation resistance to rule out short circuits or ground faults.
- Adjust Protection Parameters After Repair: If the root cause is confirmed to be resolved, appropriately adjust the thermal relay’s setting current (set to 1.1-1.25 times the motor’s rated current) to avoid false triggering due to instantaneous inrush current (but do not set it too high, otherwise it will lose its protective effect).
V. Improper Installation and Maintenance: Chronic Overheating Caused by Long-Term Neglect of Details
1. Common Hidden Dangers
- Inclined Installation: Misalignment between the motor and pump shaft (coaxiality deviation > 0.1mm) or unlevel installation (inclination angle > 5°) causes increased vibration during operation, greater bearing friction, and affects the balance of the cooling fan, reducing cooling efficiency.
- Poor Lubrication: Lack of oil in bearings or deteriorated grease (such as dried or emulsified grease) increases the friction coefficient, generating additional heat (bearing temperature can exceed 100°C and conduct to the motor shell).
2. Solutions
- Correct Installation: Use a dial indicator to check the coaxiality of the motor and pump; adjust gaskets to ensure radial runout ≤ 0.05mm. Use a level to calibrate the motor mounting surface, ensuring the levelness error ≤ 0.1mm/m.
- Standardize Lubrication: Add appropriate grease according to bearing type (No. 2 lithium-based grease for high-speed motors, No. 3 for low-speed motors). The grease quantity should be 1/2-2/3 of the bearing cavity (excessive grease will hinder heat dissipation). Replace the grease every 2000 hours of operation.
Summary
The core cause of water pump motor overheating is “heat generation > heat dissipation”. Among them, overload and cooling failure are the most common reversible faults, which can be resolved by adjusting operating conditions and cleaning the cooling system. Winding insulation damage is an irreversible fault that requires timely repair or motor replacement. In daily use, it is recommended to regularly (monthly) measure the motor shell temperature with an infrared thermometer. Once it exceeds 90°C, immediately shut down for inspection to avoid frequent triggering of protection mechanisms affecting production and prolong the motor’s service life.
