How to choose a water pump and what precautions should be taken?
Selecting a water pump is critical to ensuring its efficient, stable operation. The process requires comprehensive analysis of actual needs, medium properties, and environmental conditions. Below are detailed steps and considerations for pump selection:
I. Core Steps for Water Pump Selection
1. Define Key Requirement Parameters
This forms the foundation of selection. Accurately calculate or confirm the following:
- Flow rate (Q): The volume of fluid to be transported per unit time (e.g., m³/h, L/s). Determine based on specific scenarios: for instance, domestic water supply depends on peak water usage, while industrial lines rely on total equipment water consumption.
- Head (H): The total resistance the pump must overcome, consisting of three parts:
- Geometric head: Vertical height difference between the fluid’s source and destination (e.g., from a tank to a rooftop reservoir).
- Pipeline resistance: Friction in straight pipes (related to pipe diameter, length, and fluid velocity).
- Local resistance: Resistance from valves, elbows, tees, and other fittings.
Note: Reserve a 10%-20% head margin during selection to account for potential resistance increases due to pipeline aging or changes in fluid viscosity.
2. Analyze Fluid Characteristics
The physical and chemical properties of the fluid directly determine the pump type. Focus on:
- Fluid type: Clean water (e.g., tap water), sewage (with suspended solids), corrosive liquids (e.g., acids/alkalis), particle-laden fluids (e.g., sludge), or high-temperature fluids (e.g., boiler water).
- Key properties:
- Viscosity: High-viscosity fluids (e.g., oil, syrup) require positive displacement pumps (screw pumps, gear pumps) rather than centrifugal pumps, which are inefficient for thick fluids.
- Corrosiveness: Acidic or alkaline fluids need corrosion-resistant pumps (made of stainless steel, fluoroplastic, etc.).
- Solid content: Fluids with particles (e.g., sediment, waste) require sewage pumps (with cutting impellers or wear-resistant materials).
- Temperature: High-temperature fluids (e.g., >80℃) demand heat-resistant pumps (with heat-resistant seals and bearings, such as boiler feed pumps).
3. Choose the Right Pump Type
Select based on working principles and application scenarios:
| Pump Type | Applicable Scenarios | Key Features |
|---|---|---|
| Centrifugal pump | Clean water, low-viscosity fluids; medium-to-high head (10-200m); small-to-medium flow | Simple structure, low cost, widely used; unsuitable for high-viscosity or large-particle fluids. |
| Axial flow pump | Low head (1-10m), large flow (e.g., agricultural irrigation, urban drainage) | High flow rate and efficiency; ideal for short-distance, large-volume transport. |
| Mixed flow pump | Head ranges between centrifugal and axial flow pumps (5-50m) | Balances flow and head; suitable for irrigation, river dredging, etc. |
| Positive displacement pump | High head (>200m), small flow; high-viscosity fluids (e.g., grease, sludge) | Stable flow (unaffected by head); complex structure and higher cost. |

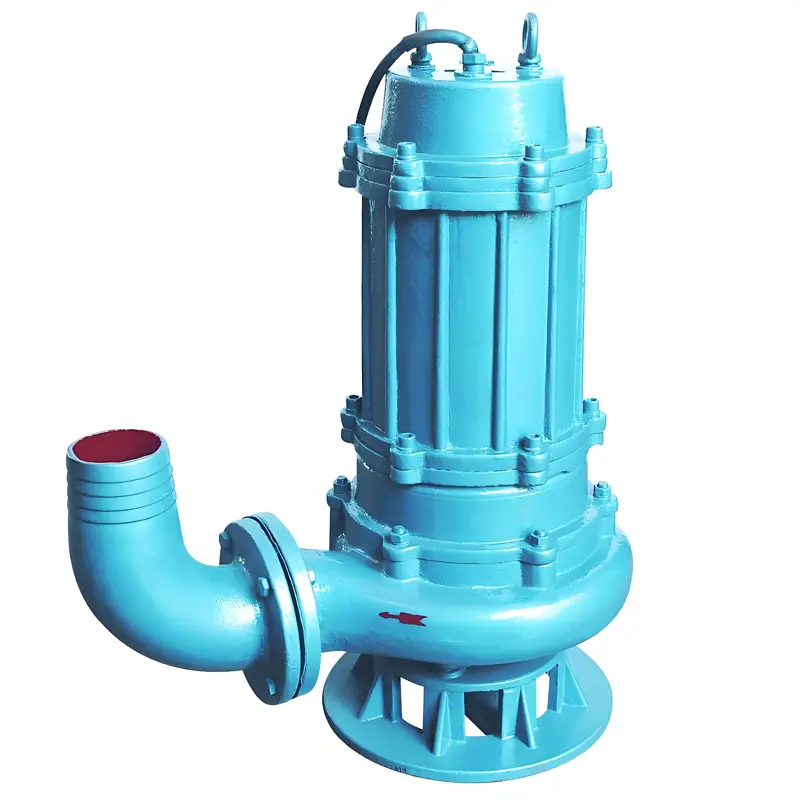

| Submersible sewage pump | Sewage/wastewater transport (e.g., basement sumps, wastewater treatment plants) | Submerges directly in fluid, saving space; features anti-clogging impellers. |
4. Match Performance and Structure
- Operate in the high-efficiency zone: The pump’s actual operating point (flow + head) should lie within its high-efficiency range (typically 70%-120% of rated parameters). This minimizes energy use and extends lifespan, verified via the pump’s Q-H performance curve.
- Structure selection:
- Horizontal pumps: Easy to install on the ground and maintain (e.g., industrial pipeline pumps).
- Vertical pumps: Space-saving for narrow areas (e.g., high-rise building water supply).
- Submersible/sunken pumps: No separate pump room needed (e.g., submersible sewage pumps, deep well pumps).
5. Determine Power and Control Systems
- Motor sizing: Calculate motor power based on the pump’s shaft power (shaft power = flow × head × fluid density × gravity ÷ efficiency), with a 10%-15% buffer to prevent overload.
- Environmental compatibility:
- IP rating: Humid environments require IP54 or higher; underwater use needs IP68 (e.g., submersible pumps).
- Explosion protection: Flammable/explosive areas (e.g., chemical plants) require explosion-proof motors (e.g., Ex dⅡBT4).
- Control features: For flow adjustment (via variable frequency drives), automatic start/stop (e.g., linked to liquid levels), or overload protection, pair with compatible control systems.
II. Key Selection Considerations
1. Avoid Parameter Mismatches
- Don’t oversize for “extra” flow/head: This causes energy waste (“overpowered systems”). Undersizing fails to meet demand and may burn out the motor.
- Prevent cavitation: The pump’s required net positive suction head (NPSHr) must be less than the system’s available NPSHa. Insufficient suction pressure causes cavitation (impeller damage, noise). Limit suction height to 5-6m (lower for low-boiling fluids).
2. Prioritize Fluid Compatibility
- Never use clean water pumps for particle-laden fluids: Their narrow impeller gaps lead to clogging and wear (use sewage pumps with wear-resistant impellers instead).
- Avoid cast iron pumps for corrosive fluids: Cast iron corrodes easily; opt for 304/316 stainless steel or fluoroplastic.
- High-temperature fluids need specialized seals: Standard mechanical seals work up to 80℃; use metal bellows seals for temperatures over 200℃.
3. Optimize Installation and Piping
- Minimize pipeline resistance: Reduce unnecessary elbows/valves (each 90° elbow adds ~0.5-1m of head loss).
- Seal suction pipes tightly: Leaks cause reduced flow and cavitation—use gaskets and secure fittings.
- Install check valves on outlets: Prevent backflow from damaging impellers when the pump stops (critical for high-head systems).
4. Prioritize Maintainability and Economy
- Choose common models: Pumps with high market availability (e.g., ISG centrifugal pumps, WQ sewage pumps) have readily available parts and lower repair costs.
- Focus on energy efficiency: Select pumps with energy efficiency class 2 or higher (per national standards) to cut long-term electricity costs.
- Reserve maintenance space: Horizontal pumps need room for motor/pump disassembly; submersible pumps require hoisting equipment access.
Summary
The core logic for water pump selection is: “Define requirements → analyze fluid properties → match pump type → optimize performance → adapt to environment”. Tailor parameters to scenarios (e.g., domestic water, industrial sewage, agriculture) and avoid risks like cavitation, overload, or material incompatibility to ensure reliable, efficient operation.
