How to Install Deep Well Water Pumps in Rural Areas: A Beginner’s Guide

Understanding Rural Deep Well Scenarios

• Variable well depth: Wells may range from 50 feet (shallow deep wells) to over 300 feet, depending on the water table depth.
• Remote locations: Limited access to electricity (may rely on generators or solar) and professional services.
• Harsh conditions: Extreme temperatures, dust, and occasional flooding require durable equipment.
• Multi-purpose use: Water may need to serve homes, barns, and irrigation systems—demanding consistent pressure.

Step 1: Choose the Right Deep Well Pump

1. Well Depth & Water Level

• Measure the static water level (depth from ground to water when the well is unused) and total depth (ground to well bottom).
• Example: A well with a total depth of 200 feet and a static water level at 80 feet requires a pump rated for at least 120 feet of “lift” (distance from the water to the ground).

2. Flow Rate (GPM)

• Calculate based on usage:
  • A 4-person household needs 10–15 GPM.
  • Add 5–10 GPM for irrigation or livestock watering.

3. Power Source

• Electric: Most common if grid power is available (230V is standard for rural pumps).
• Solar: Ideal for off-grid areas. Pair with a 24V/48V pump and battery storage (size the panels to match the pump’s wattage).
• Generator: Use as backup; ensure generator wattage exceeds pump startup power (typically 2–3x running wattage).

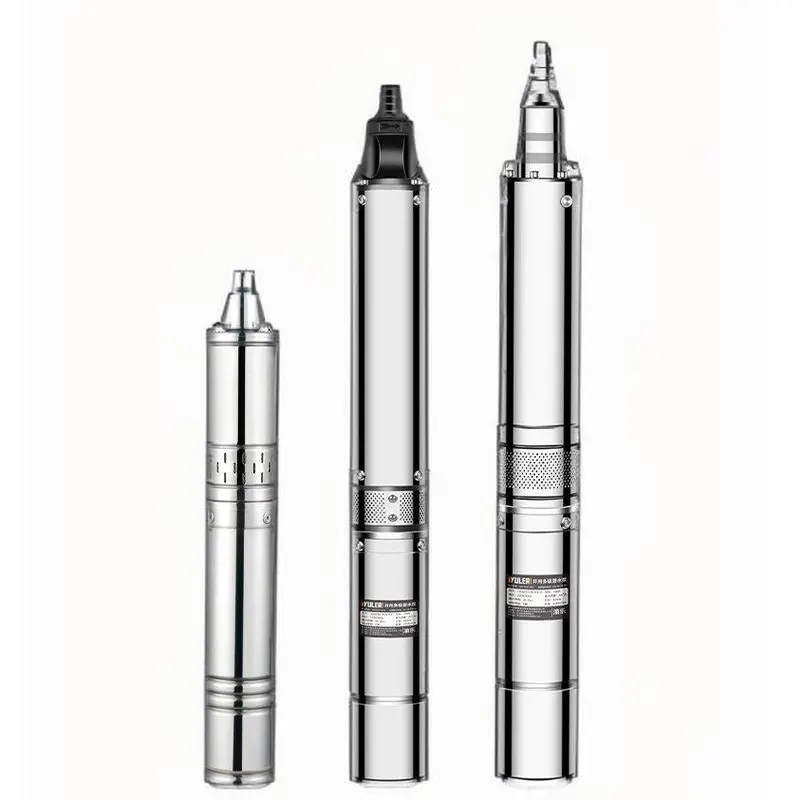

4. Pump Type

• 3-wire submersible pumps: Separate motor control box (easier to repair in rural areas).
• 2-wire submersible pumps: Built-in controls (simpler installation but harder to troubleshoot).

Step 2: Tools & Materials You’ll Need

• Submersible pump (with cable and drop pipe adapter)
• Drop pipe (PVC or stainless steel; diameter matches pump outlet, usually 1–2 inches)
• Safety rope (rated for pump weight + water)
• Check valve (prevents water backflow)
• Pressure tank and switch (regulates water pressure)
• Electrical conduit and wiring (rated for wet locations)
• Well cap (seals the well to keep out debris)
• Tools: Pipe cutter, wrench set, tape measure, level, torque wrench

Step 3: Installation Steps

1. Prepare the Well

• Clean the well: If new, flush with water to remove sediment. For existing wells, check for debris or mineral buildup.
• Inspect the well casing: Ensure it’s straight and undamaged (bends can trap the pump during installation).

2. Assemble the Pump & Drop Pipe

• Attach the check valve to the pump outlet (this prevents water from draining back into the well when the pump stops).
• Connect the first section of drop pipe to the check valve. Use Teflon tape on threads to prevent leaks.
• Secure the safety rope to the pump (leave extra length to reach the ground).

3. Lower the Pump into the Well

• Have 2–3 people assist (critical for deep wells):
  • One person feeds the drop pipe into the well.
  • Others stabilize the pipe to avoid bending.
• Lower slowly until the pump is 10–20 feet below the static water level (check your earlier measurements).
• Secure the drop pipe to the well casing with a clamp to prevent it from falling.

4. Electrical Connections

• For grid-powered pumps:
  • Run the pump cable through the conduit to the control box (mounted 4–5 feet above the ground and protected from the weather).
  • Connect wires to the control box per manufacturer instructions (black to black, white to white, green to ground).
• For solar pumps:
  • Connect directly to the solar inverter or charge controller (ensure polarity matches).

5. Install Pressure Tank & Switch

• Mount the pressure tank near the well (on a level, stable surface).
• Connect the tank to the drop pipe outlet using a shutoff valve (allows pump servicing).
• Wire the pressure switch to the control box (turns the pump on when pressure drops below 30 PSI, off at 50 PSI, typical settings).

Step 4: Testing & Commissioning

1. Initial Startup

• Open a faucet to bleed air from the system.
• Turn on power and let the pump run until water flows steadily (may take 5–10 minutes for deep wells).
• Check for leaks in pipes or fittings—tighten as needed.

2. Pressure Adjustment

• Use a pressure gauge to verify:
  • Cut-in pressure (pump starts): 30 PSI (adjustable via pressure switch).
  • Cut-out pressure (pump stops): 50 PSI.
• If pressure fluctuates, check for air in the tank (bleed via the tank’s air valve).

3. Flow Test

• Run multiple faucets simultaneously to ensure flow rate meets needs.
• For irrigation systems, test sprinklers or drip lines to confirm pressure reaches all zones.

Critical Safety & Maintenance Tips for Rural Areas

1. Safety First

• Never work on electrical connections without turning off power.
• Use a well cap with a lock to prevent contamination (critical for drinking water).
• Keep tools and parts away from children and livestock.

2. Maintenance Schedule

• Monthly: Check the pressure gauge and look for leaks.
• Quarterly: Inspect the pressure tank’s air pressure (should match cut-in pressure when empty).
• Annually:
  • Pull the pump (if possible) to clean debris from the intake screen.
  • Test water quality (common in rural areas with mineral-rich water).

3. Troubleshooting Common Issues

• Pump won’t start: Check fuses, pressure switch, or solar panel connections.
• Low pressure: Clean the intake screen or adjust the pressure switch.
• Short cycling (pump turns on/off rapidly): Add air to the pressure tank or replace a waterlogged tank.

4. Rural-Specific Tips

• Protect electrical components from rodents (use metal conduit) and harsh weather (mount control boxes under a shed).
• For off-grid systems, store spare fuses, cables, and a manual pump as backup during power outages.
• If water contains sand or sediment, install a pre-filter to extend pump life.
