How to Control a Frequency Inverter with a PLC? A Complete Guide Controlling a frequency inverter (VFD) with a PLC is a prevalent application in industrial automation. It primarily enables the control of motor speed, start/stop operations, and other key parameters through electrical connections and program logic. Below is a detailed breakdown of the implementation methods and step-by-step procedures: I. Control Principle As the core control component, the PLC (Programmable Logic Controller) sends commands to the frequency inverter via digital or analog signals. In response, the inverter adjusts its output voltage and frequency to regulate the motor’s operating status—including start/stop functionality, speed adjustments, and forward/reverse rotation. II. Common Control Methods Based on the type of signals used, the main control methods are categorized as follows: 1. Digital Control (Switch Control) Application Scenario: Ideal for scenarios that only require motor start/stop and forward/reverse control, without the need for real-time speed adjustments (or when speeds are preset via the inverter panel). Connection Method: Connect the PLC’s Digital Output (DO) terminals to the inverter’s control terminals (e.g., “Forward Start”, “Reverse Start”, “Stop” terminals). Example: Link the PLC’s DO points to the inverter’s “FWD” (Forward), “REV” (Reverse), and “STOP” terminals. The inverter is activated when the PLC outputs high/low levels or triggers relay contacts. Advantages: Features simple wiring and strong anti-interference capabilities. 2. Analog Control Application Scenario: Perfect for applications that demand continuous motor speed adjustments (e.g., real-time speed modifications based on process requirements). Connection Method: Connect the PLC’s Analog Output (AO) terminals to the inverter’s Analog Input (AI) terminals. Most inverters support 0~10V voltage signals or 4~20mA current signals. The inverter outputs different frequencies in direct correspondence to the magnitude of the analog signal (e.g., a 0~10V signal corresponds to a 0~50Hz frequency output). Notes: Analog signals are prone to interference. Use shielded...

VFD Parameters to Check During Motor No-Load Operation During the motor no-load operation phase, checking the parameters of a Variable Frequency Drive (VFD) is a core step to verify equipment compatibility and operational stability. Focus should be placed on three key categories: output electrical parameters, protection function parameters, and control mode & frequency parameters, as detailed below: I. Output Electrical Parameters (Real-Time Monitoring Category) These parameters require real-time observation throughout no-load operation to ensure no abnormal fluctuations or threshold violations. They are critical for evaluating the VFD’s output performance: Output Three-Phase Current Core Requirement: The three-phase current must be balanced (unbalance degree ≤10%, calculated as: (Maximum current – Minimum current)/Average current × 100%), and the no-load current must align with the motor’s specifications (typically 20%~50% of the motor’s rated current). Key Check Points: No significant current fluctuations during operation (fluctuation range ≤5% of the motor’s rated current) and no instantaneous peak current (to prevent triggering overcurrent protection). Output Three-Phase Voltage Core Requirement: The three-phase voltage must be symmetrical (voltage difference ≤5% of the VFD’s rated output voltage), and the voltage waveform should closely resemble a sine wave (no severe distortion or abnormal harmonics; an oscilloscope can be used for auxiliary detection). Key Check Points: In V/F control mode, voltage must change proportionally to the output frequency (e.g., 50Hz corresponds to the rated voltage, while 10Hz corresponds to 20% of the rated voltage), with no sudden voltage spikes or drops. DC Bus Voltage Core Requirement: During stable operation, the DC bus voltage fluctuation range must be ≤±5% of the rated value (e.g., for a VFD with 380V input, the DC bus voltage typically ranges from 510V to 540V, and fluctuations must be controlled within 25V). Key Check Points: No threshold-exceeding voltage surges in the bus during start-stop phases (e.g., no voltage...

VFD Motor No-Load Operation: Acceptance Standards & Checklist The acceptance of VFD (variable frequency drive)-driven motor no-load operation is a critical verification step before equipment commissioning. It requires multi-dimensional index testing to confirm that the equipment operation status meets design requirements and safety standards. The specific acceptance criteria are divided into the following four categories: I. Electrical Performance Acceptance Criteria 1. Current Parameter Acceptance Three-phase current balance: The unbalance degree of the VFD’s output three-phase current shall be ≤10% (calculation formula: (Maximum current - Minimum current)/Average current × 100%), with no significant fluctuation (fluctuation range ≤5% of rated current). No-load current value: It shall comply with the motor technical manual, usually 20%~50% of the motor’s rated current (reference range for asynchronous motors; synchronous motors shall be adjusted according to specific models), without abnormal high or low values. No overcurrent alarm: During the entire operation process (including start-up, stable operation, and shutdown phases), the VFD shall have no “overcurrent” or “overload” alarms, and the current monitoring value shall not exceed 80% of the VFD’s overcurrent protection setting. 2. Voltage Parameter Acceptance Three-phase voltage symmetry: The difference between the VFD’s output three-phase voltages shall be ≤5% of the rated output voltage, with no obvious phase shift (the voltage waveform can be detected by an oscilloscope, which shall be close to a sine wave without severe distortion). DC bus voltage: The fluctuation range of the DC bus voltage during stable operation shall be ≤±5% of the rated value (e.g., for a VFD with 380V input, the DC bus voltage is usually 510~540V, and the fluctuation shall be controlled within 25V). No overvoltage/undervoltage alarm: When the input power voltage fluctuates within ±10% of the rated value, the VFD shall have no “overvoltage” or “undervoltage” alarms, and the output voltage shall change normally with frequency (voltage...

Inverter Motor No-Load Operation: Technical Requirements & Best Practices Guide No-load operation of inverter-driven motors is a critical phase in the commissioning process. Its core objective is to verify the compatibility between the motor and inverter, the stability of equipment operation, and the rationality of parameter settings. The technical requirements cover multiple aspects including preliminary preparations, parameter configuration, operational procedures, condition monitoring, and safety compliance, which are detailed as follows: I. Technical Requirements for Preliminary Preparations 1. Equipment and Wiring Inspection The motor must comply with the voltage and frequency range of the inverter’s output. Its nameplate parameters (rated voltage, rated frequency, rated speed, etc.) should be clearly marked and compatible with the inverter. The motor must also have good insulation performance—use a megohmmeter to test the insulation resistance between phases and to ground, which should be no less than 0.5MΩ for low-voltage motors. The inverter should be properly sized, with a rated output current not less than 1.1~1.2 times the motor’s rated current, and support the motor’s control mode (e.g., V/F control, vector control). Wiring must be secure and correct: the main circuit power wiring should be free of looseness and short circuits; the motor’s three-phase wiring should have the correct phase sequence and symmetry; the grounding line must meet standard specifications (grounding resistance should comply with equipment requirements). The control circuit wiring should be error-free to avoid signal interference. Remove obstacles around the motor, check the lubrication of motor bearings (fill with specified lubricating oil), ensure the fan is firmly installed, and confirm there is no mechanical jamming during rotation. 2. Environmental and Power Supply Conditions The operating environment’s temperature, humidity, and dust concentration must meet the rated working conditions of the inverter and motor (typically 0~40℃ for temperature, 20%~90% for humidity without condensation). The input power supply voltage...

Dust & Corrosive Gas Limits for Frequency Converters: Africa, Brazil, SE Asia Guidelines Combined with the typical environmental characteristics (e.g., high temperatures, high humidity, heavy dust, and corrosive gases in some areas) of countries and regions including Africa (including Ethiopia), Brazil, Pakistan, the Philippines, Thailand, and Egypt, the allowable concentrations of dust and corrosive gases in frequency converter installation environments are still based on equipment manufacturers’ technical specifications. However, protective requirements need to be adjusted according to local environmental challenges. Below are specific standards and practical suggestions tailored to these regions: I. Allowable Dust Concentration & Adaptation Solutions These regions commonly face issues like industrial dust (e.g., manufacturing zones in Egypt and Pakistan), wind-blown sand (e.g., areas near the Sahara in Africa and desert regions in Egypt), and agricultural dust (e.g., farmland surroundings in Thailand and the Philippines). Dust concentration control must be stricter, with targeted protective measures: 1. General Allowable Concentration Standards For both standard industrial-grade and sealed frequency converters, suspended dust concentration should ideally be ≤ 0.1 mg/m³ (cumulative weight concentration). This standard covers most basic industrial scenarios in these regions, preventing dust from quickly blocking heat dissipation channels. Conductive dust (e.g., metal particles in African mining areas) and adhesive dust (e.g., sugar dust in Brazilian sugar refineries) are strictly prohibited. Such dust easily adheres to circuit boards in high-humidity environments, causing short circuits, so their allowable concentration should be near 0. 2. Regional Targeted Requirements Wind-blown sand-prone areas (e.g., Egypt and northern African desert regions): Even with IP54+ rated frequency converters, additional dust covers and sand filters are necessary. Internal dust concentration here should be controlled to ≤ 0.05 mg/m³ to prevent fine sand from seeping into equipment gaps. Agricultural/light industrial zones (e.g., Thai rice mills, Philippine coconut processing plants): Dust is mostly organic and tends to clump when...

How to Fix Water Pump Rust: Solutions for Water-Scarce & Resource-Limited Areas As a professional water pump manufacturer, we understand that water pumps are critical for daily water access, agricultural irrigation, and basic livelihoods—especially in water-scarce areas and regions with limited resources. Rust on water pumps not only disrupts water supply but also creates extra challenges due to limited repair tools and budget constraints. To help you address water pump rust effectively using local resources, this guide covers common causes of water pump rust, low-cost DIY fixes, and sustainable prevention tips tailored to your environment. 1. Common Causes of Water Pump Rust (Why It Happens in Your Area) Before fixing rust, it’s key to understand why it forms—especially in resource-limited or water-scarce regions. This helps you target solutions more precisely. 1.1 Material Choices & Budget Constraints Many users in resource-limited areas choose affordable cast iron water pumps due to budget limits. While cast iron is durable, it has low corrosion resistance. When exposed to moisture (e.g., rain, dew during open-air storage) or water containing sand, minerals, or trace corrosive substances (common in well water or river water), cast iron easily oxidizes and rusts. 1.2 Harsh Usage & Storage Environments Poor water quality: In water-scarce areas, water sources (wells, rivers, ponds) often contain high levels of sand, sediment, or minerals. These impurities stick to metal parts (like impellers or pipes) and speed up corrosion. Open-air exposure: Without dedicated storage spaces (a common issue in regions with limited infrastructure), pumps are left outside. Extreme temperature changes (day-night differences), rain, and dew directly contact the pump, accelerating rust. Lack of shelter: Few areas have sheds or covers for pumps, so UV rays and rain further damage the metal surface. 1.3 Limited Maintenance Awareness & Resources Many users lack access to specialized rust-preventive oils or rust removers due to cost or supply chain issues. After use,...

Quick Diagnosis and Repair Manual for Water Pump Faults in Southeast Asia I. Fault Diagnosis Quick Reference Table Fault Type Typical Symptoms Quick Diagnosis Methods Impeller Jam Difficulty starting, abnormal motor noise, sudden current surges After powering off, manually rotate the motor shaft to check for blockages; disassemble the pump body to inspect if the impeller is tangled with debris or scaled. Bearing Damage Abnormal noise during operation, excessive machine vibration, overheating of the bearing end cover Touch the bearing area to check temperature (temperatures over 80℃ are abnormal); rotate the shaft to detect excessive clearance or a stuck sensation. Shaft Seal Leakage Water leakage from the bottom of the pump body, rust accumulation near the shaft system Check for water droplet residue under the pump body; inspect if the shaft seal rubber components are aged or damaged. Motor Overload Burnout Failure to start, circuit breaker tripping, burning odor emitting from the motor Use a multimeter to test the motor winding resistance; if resistance reads zero, the motor is determined to have short-circuited and burned out. Submersible Pump Water Ingress Motor tripping, operational failure, reduced insulation resistance Measure the motor insulation resistance (readings below 2MΩ are abnormal); disassemble the motor to check for internal water stains or rust. Insufficient Flow and Head Decreased water output, inadequate water supply pressure Inspect the water inlet pipeline for blockages; check if the impeller is worn, scaled, or damaged. II. On-Site Repair Procedures (1) Repair for Impeller Jam Immediately cut off power and stop the machine, then close the inlet and outlet valves. Disassemble the pump body’s end cover and rinse the impeller and flow channel with a high-pressure water gun to remove tangled fibrous debris and sediment. Inspect the impeller for damage; replace it with the same model if necessary. After reassembly, manually...

How to Fix Frequent Water Pump Seizure in Africa, Brazil, Pakistan & Other Target Regions – VFD Protection Guide In tropical and subtropical countries and regions including Africa, Brazil, Pakistan, the Philippines, Thailand, Egypt, and Ethiopia, the primary causes of water pump seizure are excessive impurities in water, rust and scaling induced by high temperature and humidity, and unstable power supply. Solutions need to be optimized based on local environmental characteristics, and variable frequency drives (VFDs) should be utilized to enhance protection effectiveness. I. Targeted Emergency Handling Solutions Rapid Cleaning of Impurity Blockages: Water sources in these regions often contain large quantities of sediment and plant fibers (such as aquatic plant residues in African rivers). After disassembling the pump body, rinse the impeller and flow channel with a high-pressure water gun, prioritizing the removal of fibrous debris wrapped around the shaft to avoid impeller damage from forced prying. Treatment of High-Temperature Rust: The hot and humid tropical environment accelerates the rusting of shafts and bushings. Apply locally accessible anti-rust grease (e.g., general-purpose lithium-based grease). In cases of severe rust, directly replace the shaft components with stainless steel to reduce the risk of subsequent seizure. Investigation of Power Supply Anomalies: Countries like Pakistan and the Philippines face power supply fluctuations. If the motor seizes due to overload caused by sudden voltage surges or drops, first inspect the motor insulation condition, then reset the parameters via the VFD before restarting. II. Preventive Measures Adapted to Local Environments Strengthen Filtration and Medium Adaptation: Install multi-layer filters (pore size ≤ 2mm) at the water inlet. For eutrophic water sources such as African lakes and Brazilian rainforests, clean the filters regularly (1-2 times a week) to prevent algae growth and blockage. When handling corrosive industrial or agricultural water, adopt corrosion-resistant cast iron or engineering plastic...

Core Advantages of VFD Motors: Ideal for Africa, Brazil, Pakistan & Southeast Asia (2025 Guide) 1. Extreme Energy Efficiency: Cut Electricity Costs by 20%-60% – Perfect for High-Energy-Cost Regions The biggest advantage of VFD (Variable Frequency Drive) motors is their ability to save energy by matching speed to load—a top priority for users in Africa, Brazil, and Pakistan, where electricity costs are often high or supply is unstable. Unlike fixed-speed motors, which run at full power even when demand is low, VFD motors use an inverter to adjust power frequency and voltage in real time. For example: In Nigerian factories, VFD-driven fans reduce energy use by 30% during off-peak production hours; In Philippine water treatment plants, VFD pumps cut monthly electricity bills by up to 40% compared to old fixed-speed models; In Brazilian agricultural irrigation systems, VFD motors adapt to changing water needs, saving farmers thousands of reals each year on energy costs. This energy efficiency also helps address frequent power shortages in countries like Ethiopia and Egypt, as VFD motors reduce overall grid demand. 2. Stable Performance for Unstable Grids: Soft Start & Voltage Adaptation Many target regions (e.g., Pakistan, parts of Africa) face unstable power grids with voltage fluctuations. VFD motors solve this issue with soft start technology and voltage adjustment capabilities: Soft start limits the starting current to 1.5-2 times the rated current (compared to 5-7 times for fixed-speed motors), preventing damage from sudden voltage spikes—this is critical in Kenya or Tanzania, where grid surges are common; Automatic voltage regulation keeps VFD motors running smoothly even if the grid voltage drops by 10%-15%, avoiding downtime for Thai textile factories or Egyptian food processing plants. This stability reduces repair costs, which is vital for small businesses in the Philippines or Ethiopia with limited maintenance budgets. 3. Durable Design for Tough...

1. Solid Configuration Lays the Foundation for Value The value of the DreamWe Inverter is carefully shaped by its robust technical configuration. At its core, it adopts a DSP control system that integrates three control modes: sensorless vector control (SVC), vector control with an encoder (VC), and V/F control. It can output a starting torque of 150% at a low frequency of 0.5Hz, with a speed control accuracy of ±0.1% and a speed adjustment range of 1:100—all of which allow it to accurately meet the needs of different loads. This performance is particularly crucial for scenarios such as fan operation, pump systems, and high-precision speed regulation, as it effectively prevents mechanical resonance and low-frequency oscillation, thereby reducing equipment wear. With a wide power range spanning 0.75kW to 1200kW, the DreamWe Inverter offers suitable options for industrial scenarios of all scales. Models with power ratings from 0.75kW to 15kW come equipped with a built-in braking unit, enabling quick stopping without the need for additional accessories. Furthermore, its rich I/O interface configuration—including 7 digital inputs, 1 high-speed pulse input, 2 analog inputs, and multiple output terminals—eliminates the need for extra investment in expansion modules, making system setup more flexible and efficient. 2. Scene Adaptability Reduces Comprehensive Investment In industrial applications, the ability of equipment to adapt to different scenes directly impacts the efficiency of actual investment—and the DreamWe Inverter stands out with significant advantages in this area. For common industrial scenarios like water drainage and ventilation, its built-in features (such as 16-segment simple PLC, multi-speed control, and PID control) enable automatic operations (e.g., water level adjustment and air volume adaptation) without the need to write complex control programs. The speed tracking and restart function allows for smooth, impact-free startup of rotating motors, preventing equipment damage and restart-related losses caused by sudden shutdowns....

What Are the Application Scenarios of Inverter Motors? Inverter motors, with core advantages such as wide-range speed regulation, energy efficiency, and stable starting and braking, are applied across industrial, commercial, and residential sectors—especially in working conditions that require dynamic speed adjustment, energy conservation, or high operational stability. Below are specific categories and typical scenarios: I. Industrial Production (Core Application Scenario) Industry is the primary application field for inverter motors, as they significantly improve production efficiency, reduce energy consumption, and adapt to various precision or high-load equipment: Machining Equipment CNC machine tool spindles: Speed needs to be adjusted based on different materials (e.g., metal, plastic) and cutting processes (milling, drilling, grinding). Inverter motors enable precise speed regulation from 0 to several thousand r/min, ensuring machining accuracy. Textile machinery (carding machines, looms): Roller speed must be dynamically adjusted according to yarn thickness and fabric density to prevent yarn breakage or uneven fabric patterns. Printing machines: Adjusting roller speed to match ink drying speed ensures clear printed patterns, accurate color registration, and reduced waste rates. Fluid Control Equipment Industrial water pumps (e.g., factory circulating water pumps, water supply pumping stations): Flow is adjusted based on production water demand or pipeline pressure. Compared with fixed-frequency motors, inverter motors save 30%–50% of energy and avoid energy waste from “overcapacity operation.” High-pressure fans/blowers (e.g., chemical workshop ventilation, pneumatic conveying systems): Air volume is adjusted according to workshop exhaust gas concentration or material conveying volume, reducing noise and the risk of motor overload. Air compressors (factory compressed air supply): Displacement is adjusted via frequency conversion to match the real-time air demand of pneumatic equipment, avoiding energy loss and equipment wear caused by frequent starts and stops of fixed-frequency motors. Material Conveying and Lifting Equipment Inverter-driven conveyors (e.g., assembly lines, mine conveyors): “Soft starting” prevents material impact and...

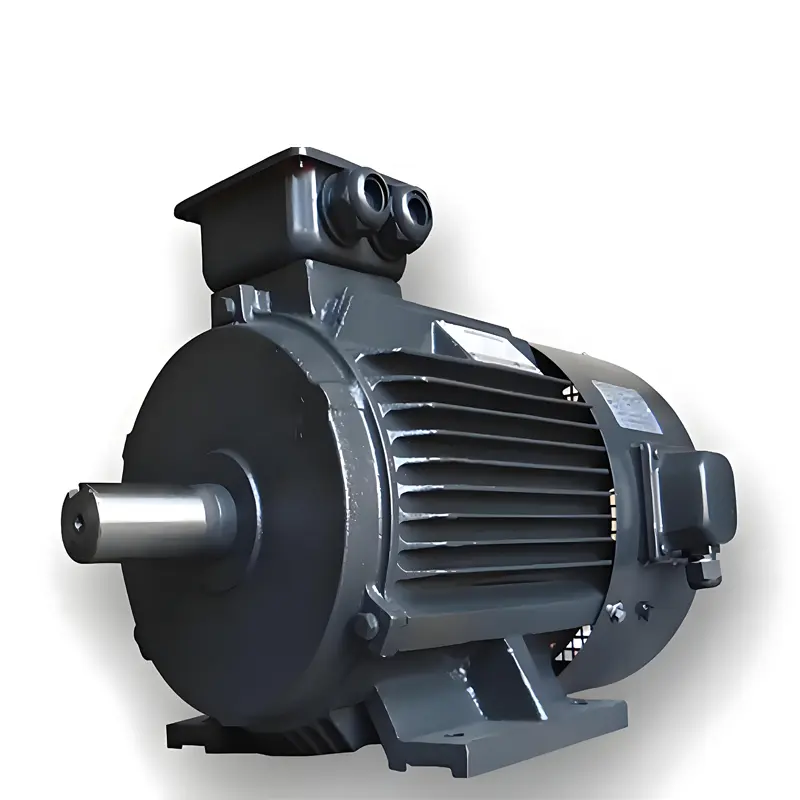

Differences Between Inverter Motors and Ordinary Motors The core differences between inverter motors and ordinary motors (usually referring to fixed-frequency asynchronous motors) lie in their design objectives, structural characteristics, and operating methods. The former is optimized specifically for scenarios requiring “adjustable speed,” while the latter is only suitable for constant-speed operation with a “fixed-frequency power supply.” Below is a comparison across 7 key dimensions, supplemented by applicable scenarios and selection recommendations to help you fully understand the differences between the two: I. Core Differences: Comparison Across 7 Dimensions Comparison Dimension Ordinary Motors (Fixed-Frequency Asynchronous Motors) Inverter Motors Design Objective Adapted to fixed-frequency power supplies (e.g., 50Hz in China, 60Hz in overseas markets) to achieve constant-speed operation, with a focus on “efficiency under rated working conditions.” Adapted to variable-frequency power supplies (ranging from 0 to several hundred Hz) to enable wide-range speed adjustment, with an emphasis on “stability and reliability across the entire speed range.” Motor Structure 1. Rotor: An ordinary cast-aluminum rotor with low conductor bar resistance (prioritizing efficiency at rated speed); 2. Heat Dissipation: Relies solely on natural heat dissipation through the housing or a simple fan (fixed speed, resulting in constant heat dissipation capacity); 3. Insulation: Uses conventional insulating materials, which only withstand rated voltage fluctuations of the power grid. 1. Rotor: A specially designed rotor (e.g., deep-slot rotor, copper conductor bars) with slightly higher conductor bar resistance (suppressing the “slip rate” at low speeds to reduce heat generation); 2. Heat Dissipation: Equipped with an independent forced cooling fan (powered by a separate power source, unaffected by motor speed, ensuring efficient heat dissipation even at low speeds); 3. Insulation: Adopts high-frequency and high-voltage resistant insulating materials (resisting “peak voltage” generated by variable-frequency power supplies to prevent insulation breakdown). Speed Control Speed is fixed (determined by power supply frequency: Speed ≈ 60 × Frequency...
