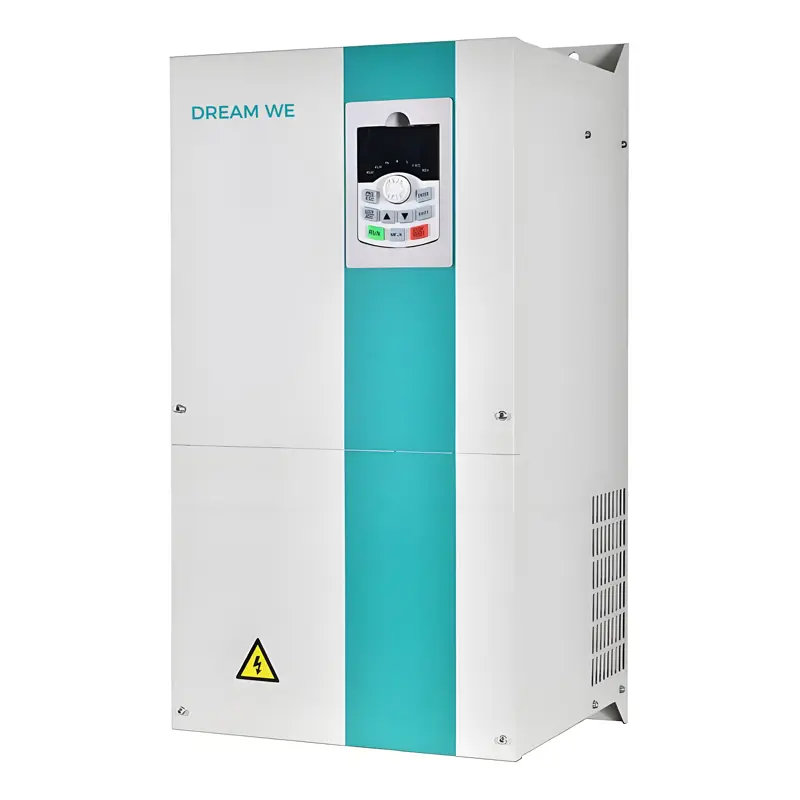

How to Correctly Select a Water Pump Frequency Converter

1. Clarify Core Parameters of the Pump and Motor

1. Power Matching
   • The rated power of the frequency converter must equal or slightly exceed the power of the water pump motor (a 10%-20% margin is recommended). For example: a 5.5kW pump motor should be paired with a frequency converter of ≥5.5kW to prevent frequent shutdowns or burnout caused by an underpowered converter.
   • If the pump experiences frequent starts or sudden load fluctuations (e.g., when a sewage pump handles debris), the margin can be increased to 30%.
2. Voltage and Phase
   • Confirm whether the pump motor is single-phase (220V) or three-phase (380V), and select a frequency converter with the corresponding voltage type. Note: Some three-phase converters support single-phase input (check the manual for details), but single-phase motors cannot be connected to three-phase converters.
3. Speed Range
   • Determine the speed range supported by the frequency converter based on the pump’s required flow adjustment range. For instance: centrifugal pumps typically require 0-3000rpm (for 50Hz power supplies), while deep well pumps may need lower speeds (e.g., 0-1500rpm). Ensure the converter’s speed range covers actual operational needs.

2. Analyze the Pump’s Load Characteristics

• Centrifugal/clean water pumps: These are “square torque loads,” where flow is proportional to speed, and pressure is proportional to the square of speed. They have no special requirements, so general-purpose frequency converters are sufficient.
• Sewage/submersible pumps: These may become blocked by debris or require frequent starts/stops. Choose converters with “overload protection,” “locked-rotor protection,” and “overcurrent protection” to prevent motor damage.
• Deep well pumps: Due to their long cables (usually over 10 meters), harmonic interference to the motor is common. Select converters with “output reactors” or add external reactors to suppress harmonics.
• High-pressure pumps: For systems with high pressure and large power (e.g., ≥75kW), use high-voltage dedicated converters (e.g., 660V, 1140V) and verify that the voltage resistance matches.

3. Select Functions Based on System Control Requirements

1. Basic adjustment needs (e.g., agricultural irrigation, small-scale water supply):
   • Must support “PID closed-loop control” and connect to pressure sensors or flow meters to automatically maintain set pressure/flow, eliminating the need for manual adjustment.
2. Complex scenario needs (e.g., residential secondary water supply, industrial circulation systems):
   • Multi-pump linkage: Select converters with “pump group control” to enable automatic switching and rotation of multiple pumps, balancing the load.
   • Remote monitoring: Requires support for communication protocols such as Modbus or 4G to integrate with central control systems or mobile apps, allowing real-time viewing of operating data.
   • Energy-saving sleep mode: When system flow is zero (e.g., low water usage at night), the converter can automatically shut down to avoid idle energy consumption.
3. Special protection needs:
   • Dry-running protection: Work with liquid level sensors to automatically stop the pump when it runs dry, preventing impeller burnout.
   • Leakage protection: Submersible pumps require extra attention to this function to avoid safety risks from motor leakage.

4. Adapt to Operating Environmental Conditions

1. Protection Level
   • Outdoor or humid environments (e.g., swimming pools, open pump rooms): Choose IP54 or higher (dustproof and splashproof); for direct water contact, use a waterproof enclosure.
   • Dusty workshops: Select IP55 or higher, and regularly clean heat dissipation holes to prevent dust accumulation from impairing cooling.
2. Temperature and Heat Dissipation
   • High-temperature environments (e.g., boiler rooms, outdoor summer conditions): Choose wide-temperature converters (-10℃~50℃) and ensure good ventilation at the installation location; add cooling fans if necessary.
   • Low-temperature environments (e.g., outdoor winter in northern regions): Confirm that the converter can start normally at low temperatures (some models support startup at -20℃).
3. Altitude
   • At altitudes above 1000 meters, thin air reduces heat dissipation efficiency, requiring “derating” of the converter’s power: For every 1000-meter increase in altitude, derate the power by approximately 10% (e.g., a 10kW converter at 1000 meters should be used as a 9kW unit).

5. Other Practical Selection Tips

1. Prioritize pump-specific frequency converters
   Some brands (e.g., ABB, Delta, Invt) design dedicated models for pumps, with preset parameters for centrifugal pumps, sewage pumps, etc. These simplify debugging and reduce setup errors.
2. Avoid “blind power amplification”
   A larger converter power is not always better. For a 5.5kW motor, an 11kW converter may reduce control accuracy (unstable output torque at low speeds) and increase costs.
3. Compatibility Check
   • Older pump motors (e.g., wound-rotor motors over 20 years old) may not support high-frequency operation. Confirm in advance whether the motor is a “squirrel-cage asynchronous motor” (most modern pump motors are of this type and compatible with frequency conversion).
   • If the pump is equipped with a reducer, ensure the converter’s speed range matches the reducer to avoid overspeed damage to mechanical structures.
4. Refer to Brand and After-Sales Service
   Prioritize brands with good market reputations (e.g., international brands like Siemens, Schneider; domestic brands like Inovance, Hopewind). Their products are more stable and offer comprehensive selection guidance and after-sales maintenance, reducing later maintenance risks.
