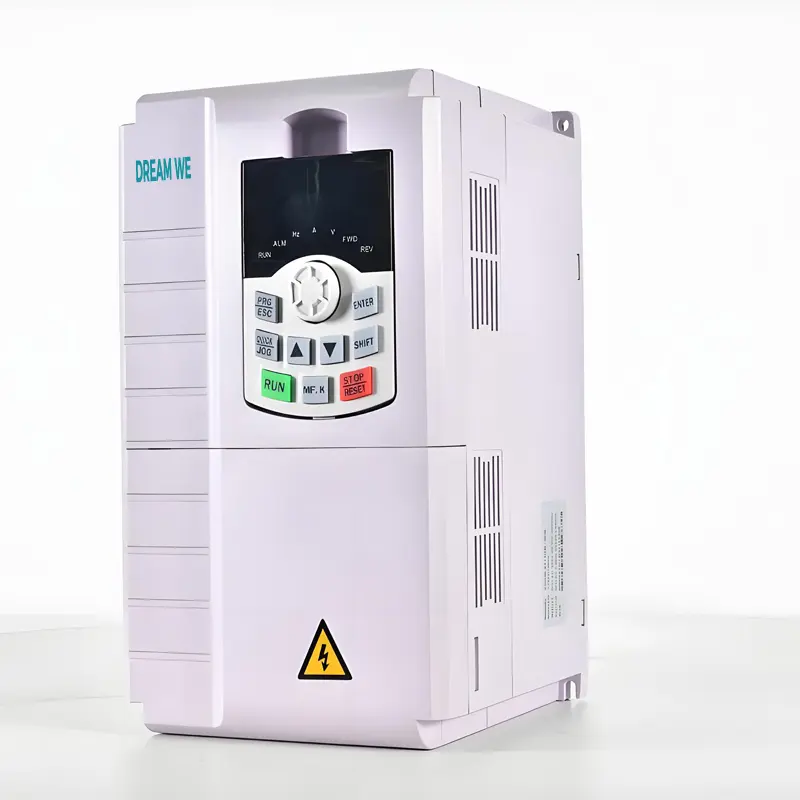

What is a Frequency Converter?
A frequency converter is a device that uses power electronics to adjust the frequency of a motor’s operating power supply, enabling precise control of the motor’s speed. Its core function is converting fixed-frequency AC power (typically 50Hz or 60Hz from the grid) into adjustable-frequency AC power. By varying the frequency, it regulates motor speed while also saving energy, protecting the motor, and optimizing load performance.
The working process of a frequency converter involves three key stages: rectification (converting AC to DC), filtering (stabilizing DC voltage), and inversion (converting DC back to adjustable-frequency AC). It uses a control circuit to receive external commands (e.g., speed settings) and dynamically adjust output frequency. Compared to traditional mechanical speed regulation methods (such as gate or valve controls), frequency converters offer smoother speed adjustments, lower energy consumption, and reduced equipment wear—making them widely used in industrial and commercial settings.
3 Applications in Industrial Manufacturing
- Machine Tool Spindle Drives
In metalworking machines (e.g., lathes, milling machines, grinders), spindle speed directly impacts machining precision and efficiency. Traditional machines rely on gear shifts for speed adjustments, which cause operational shocks and offer limited speed options. Frequency converter-equipped machines, however, enable stepless speed regulation (0–3000r/min or higher) by adjusting the spindle motor frequency: high speeds for roughing to boost efficiency, and low speeds for precision grinding to ensure accuracy. Additionally, frequency converters quickly respond to speed changes (e.g., instant shifts from low to high speed), reducing downtime during tool changes. Their overload protection also prevents motor burnout from excessive loads, enhancing machine stability and lifespan.
- Conveyor Line Speed Control
Factory material conveyors (e.g., food packaging lines, automotive assembly lines) require flexible speed adjustments to match upstream and downstream processes. For instance, in a canned food production line, if filling speeds exceed capping speeds, cans pile up; conversely, slow filling causes equipment idling. By installing frequency converters on conveyor motors, operators can real-time adjust speed via control panels: slowing down when filling lags, or speeding up to match faster capping. This dynamic control reduces material waste and idle time while cutting energy use by 20–40% compared to fixed-speed lines, thanks to a “low speed for light loads, high speed for heavy loads” model.
- Energy-Efficient Fan and Pump Operation
Fans (e.g., boiler ventilation, workshop air circulation) and pumps (e.g., cooling systems, water supply) are major industrial energy consumers. Traditional systems use valves or dampers to regulate flow, wasting significant energy through throttling. Frequency converters adjust fan/pump motor speeds based on real-time demand (e.g., workshop temperature, tank levels): reducing fan speed for lower airflow when temperatures are low, or slowing pumps to cut water supply as tanks near capacity. For example, a chemical plant’s circulating pump saw speed drop from 1450r/min (rated) to 800r/min after adopting frequency conversion, slashing power use from 75kW to ~20kW. This saves hundreds of thousands of kWh annually while reducing valve wear and extending maintenance cycles.
These industrial examples highlight frequency converters’ core value in “precise speed control, energy savings, and enhanced productivity—making them indispensable in modern industrial automation.
