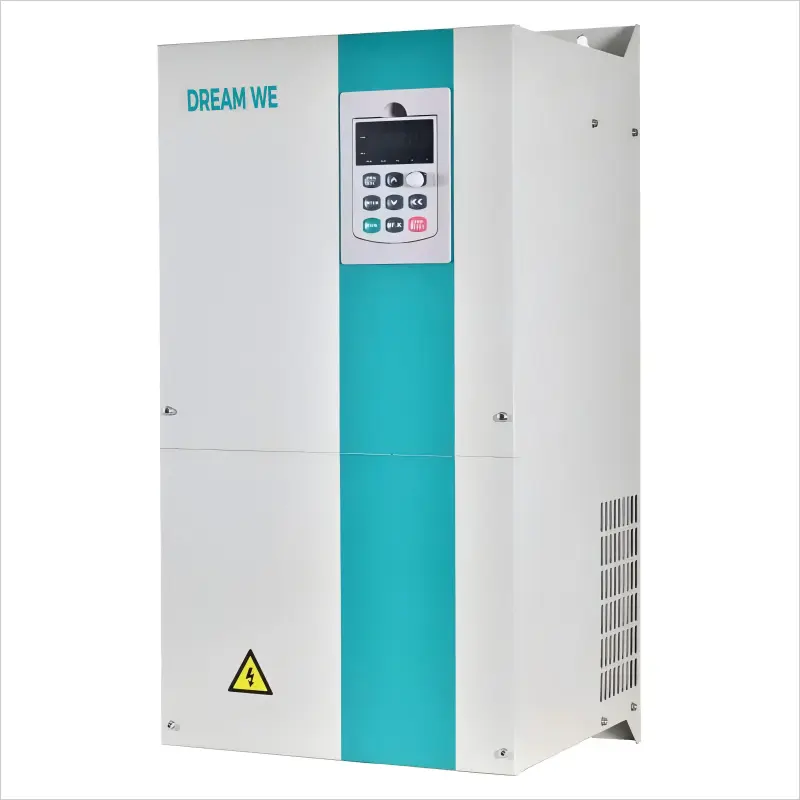

What is Inverter Vector Control?
Inverter Vector Control, also known as Field-Oriented Control (FOC), is a high-precision variable-frequency speed regulation technology based on motor electromagnetic theory. It “decouples” the complex current components in asynchronous or synchronous motors and converts them into independent control variables similar to those in DC motors. This enables precise, rapid adjustment of motor speed and torque, addressing the shortcomings of traditional V/F control in dynamic response, low-speed torque, and speed regulation accuracy.
I. Core Principle: “Decoupling” and “Field Orientation”
To understand vector control, you first need to grasp its core logic: transforming the complex control of AC motors into the simple control of DC motors. The specific principle breaks down into three key steps:
-
Current Decomposition (Decoupling)
The stator current of an AC motor comprises two core components:- Excitation current component (Id): Used solely to establish the motor’s air-gap magnetic field and has no connection to motor speed;
- Torque current component (Iq): Directly determines the motor’s output torque and is proportional to load demand.
Through mathematical algorithms (such as Clark transformation and Park transformation), vector control decomposes the three-phase stator current into these two independent DC components. This achieves separate control of the “magnetic field” and “torque” (known as “decoupling”).
-
Field Orientation
The direction of the motor’s rotor magnetic field serves as the “reference coordinate axis” (commonly called the d-axis), while the torque current component is controlled along the direction perpendicular to the magnetic field (q-axis). This “orientation” ensures the two current components do not interfere with each other—similar to the independent regulation of the “excitation winding” and “armature winding” in a DC motor. -
Closed-Loop Feedback Regulation
A motor encoder (or sensorless algorithm) detects real-time signals like speed and rotor position. After comparing these signals with target values, the system dynamically adjusts the output of Id and Iq to ultimately achieve precise tracking of speed or torque.
II. Classification of Vector Control
Based on whether it relies on feedback signals for motor rotor position or speed, vector control falls into two categories—each suited to distinct application scenarios:
| Classification | Core Characteristics | Advantages | Disadvantages | Typical Applications |
|---|---|---|---|---|
| Sensor-Based Vector Control (Closed-Loop) | Requires an encoder (e.g., photoelectric encoder, resolver) to collect real-time rotor position signals | Extremely high speed regulation accuracy (error ≤ 0.1%), large low-speed torque (can output 150% of rated torque), fast dynamic response (millisecond-level) | Higher encoder costs, strict requirements for installation space, susceptibility to environmental interference (e.g., dust, vibration) | CNC machine tool spindles, elevator traction machines, servo motors, high-precision conveyors |
| Sensorless Vector Control (Open-Loop) | No external sensors needed; estimates rotor position using motor voltage and current signals combined with mathematical models (e.g., slip frequency method, model reference adaptive method) | Low cost, simple structure, high reliability (no mechanical wear) | Poor low-speed estimation accuracy (torque fluctuations likely at ≤ 5Hz), slightly slower dynamic response than closed-loop systems | Fans, pumps (medium-to-high speed regulation), compressors, auxiliary motors for small and medium-sized machine tools |
III. Advantages and Limitations of Vector Control
1. Core Advantages (vs. Traditional V/F Control)
- Wide Speed Regulation Range: Supports a speed regulation ratio of 1:1000 or wider (e.g., 1Hz to 1000Hz), while V/F control typically only achieves a 1:100 ratio.
- Stable Low-Speed Torque: Maintains sufficient torque at extremely low speeds (e.g., 1–5Hz), avoiding the “insufficient low-speed torque” issue of V/F control. Ideal for starting heavy-load equipment (e.g., crushers, mixers).
- Fast Dynamic Response: When the load changes suddenly (e.g., fluctuations in machine tool cutting force), it adjusts torque within milliseconds to keep speed stable. In contrast, V/F control usually has a response time of seconds.
- High Speed Regulation Accuracy: Closed-loop vector control limits speed error to ≤ 0.1%, meeting the needs of high-precision equipment (e.g., printing machines, packaging machines).
2. Main Limitations
- Complex Algorithms: Relies on complex mathematical transformations (Clark/Park transformations) and real-time calculations, which demand higher CPU performance from the inverter. This makes it more expensive than V/F control inverters.
- Sensitivity to Motor Parameters: Control accuracy depends on motor parameters like stator resistance and inductance. Significant deviations between actual motor parameters and the inverter’s preset values (e.g., replacing the motor with a different model) may cause control inaccuracies—requiring re-“self-learning” of motor parameters.
- Low-Speed Shortcomings of Sensorless Mode: At ultra-low speeds near 0Hz, current signals are weak, leading to large errors in rotor position estimation. Closed-loop sensor solutions remain necessary in such cases.
IV. Typical Application Scenarios
Thanks to its high precision and fast dynamic response, vector control is primarily used in fields with strict speed regulation requirements:
- Industrial Automation: CNC machine tools, robot joint motors, servo systems, high-precision conveyor lines;
- Heavy-Duty Equipment: Cranes, elevators, mining machinery (needing to start heavy loads and operate stably at low speeds);
- Specialized Machinery: Printing machines, coating machines (requiring constant linear speed control), medical centrifuges (needing precise speed control);
- New Energy Sector: Electric vehicle drive motors, photovoltaic water pumps (using sensorless vector control to adapt to outdoor environments).
V. Comparison with Other Control Methods (V/F Control, Direct Torque Control)
To clarify the role of vector control, the table below compares mainstream variable-frequency control technologies:
| Control Method | Core Characteristics | Speed Regulation Accuracy | Dynamic Response | Cost | Application Scenarios |
|---|---|---|---|---|---|
| V/F Control | Voltage and frequency adjusted proportionally; open-loop control | Low (error: 1%–5%) | Slow (second-level) | Low | Fans, pumps, ordinary conveyors (low-precision requirements) |
| Vector Control (FOC) | Current decoupling, field orientation; closed-loop/open-loop | High (error ≤ 0.1%) | Fast (millisecond-level) | Medium-High | High-precision speed regulation, low-speed heavy-load scenarios |
| Direct Torque Control (DTC) | Direct control of torque and flux linkage; no complex transformations | Medium-High | Faster (microsecond-level) | High | New energy vehicles, high-performance servo systems |
In summary, inverter vector control is a speed regulation technology that balances “precision” and “dynamic performance.” Through mathematical modeling, it enables “DC-like control” of AC motors and has become a core solution for mid-to-high-end industrial speed regulation scenarios.
