When Is Vector Control Suitable for Use?

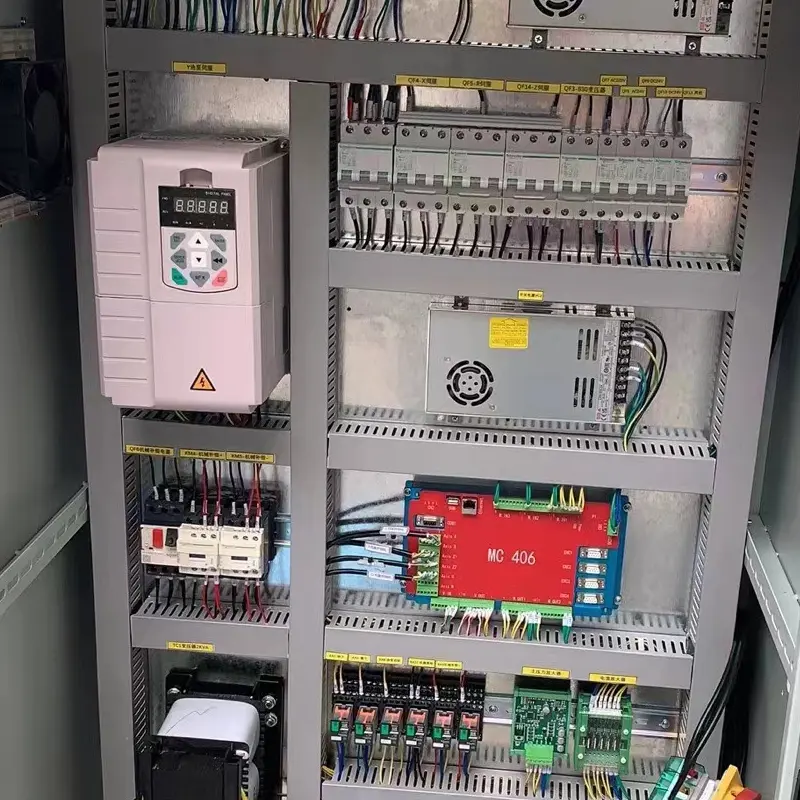

Vector Control, also known as Field-Oriented Control (FOC), is a high-performance motor control technology that achieves independent regulation of motor torque, speed, and magnetic flux by precisely controlling the amplitude and phase of the motor stator current. Its core advantages include fast dynamic response, high steady-state accuracy, and smooth torque control—making it ideal for scenarios that demand strict motor control performance. Below is a detailed breakdown of when to use vector control, organized by three key dimensions: application scenarios, core requirements, and motor types.
1. Core Requirements: Scenarios Needing “Fast Dynamic Response” and “High Control Accuracy”
When a system must quickly and accurately adjust motor states (e.g., speed, torque) or maintain stable control even amid drastic load changes—where traditional methods (such as V/F control) fail to deliver—vector control emerges as the optimal solution.
1.1 Scenarios Requiring Fast Dynamic Response
- Servo Drive Systems: This includes industrial robot joints, CNC machine tool spindles/feed axes, and robotic arms in automated assembly lines. These applications demand the motor to switch between “startup-acceleration-emergency stop-reversal” in milliseconds (e.g., rapid positioning when a robot grabs a workpiece). Vector control enables fast, overshoot-free responses by independently adjusting the torque component, preventing workpiece wobble or positioning errors.
- Elevator/Lift Drives: Elevators need to reach rated speed quickly during startup and decelerate precisely when stopping (to avoid “topping” or “bottoming” of the car), while the load (number of passengers) changes in real time. Vector control dynamically compensates for torque based on load variations, ensuring smooth startups, precise stops, and reduced operating noise.
- Electric Vehicle (EV)/New Energy Vehicle (NEV) Drives: During vehicle startup, acceleration for overtaking, or brake energy recovery, the motor must respond quickly to the driver’s inputs (e.g., minor changes to the accelerator pedal) across a wide speed range. Vector control delivers linear torque output, eliminating the “jerking” sensation common with traditional control and boosting energy efficiency.
1.2 Scenarios Requiring High Steady-State Accuracy
- Precision Machining Equipment: Examples include laser cutting machines, printing presses, and textile machinery. These devices require the motor to maintain a constant speed (e.g., the speed deviation of a printing press roller must stay within ±0.1%). Even with load fluctuations (e.g., changes in paper thickness or fabric tension), vector control suppresses speed variations through decoupled control of the flux component and torque component, guaranteeing machining precision.
- Constant Tension Control Systems: This applies to cable winding machines and film production lines. The system must maintain consistent tension for cables/films via precise motor torque control (with tension deviation < 1%). Vector control enables direct closed-loop torque regulation, avoiding tension fluctuations caused by “speed-tension coupling” in traditional control and lowering product rejection rates.
2. Load Characteristics: Scenarios Needing to Handle “Complex Loads”
When the motor load has complex traits—such as wide-ranging fluctuations, impact loads, or low-speed heavy loads—traditional control often struggles with issues like “loss of synchronization,” “stalling,” or “speed drops.” In contrast, vector control adapts to these loads with strong robustness.
2.1 Low-Speed Heavy-Load Scenarios
- Hoisting Machinery/Winches: The motor needs to output high torque at low speeds (e.g., the moment a heavy object is lifted during startup). Traditional V/F control often lacks sufficient torque at low speeds (even stalling) due to magnetic flux saturation. Vector control maintains rated torque output at low speeds (even 0 speed) through precise flux orientation, with no low-frequency vibration (e.g., smoothness when an elevator levels at low speed).
- Injection Molding Machines/Extruders: The motor drives the screw to rotate at high pressure at low speeds (during the injection phase), with significant load torque fluctuations. Vector control dynamically compensates for torque deviations, preventing plastic molding defects (e.g., uneven wall thickness) caused by screw speed variations.
2.2 Scenarios with Drastic Load Fluctuations
- Centrifuges/Crushers: The load changes in real time with material volume and hardness (e.g., torque surges when a crusher hits hard rocks). Traditional control leads to sharp speed drops, but vector control maintains stable speed during load fluctuations via rapid closed-loop torque adjustment—protecting the motor from overload damage.
- Steel Rolling Mills/Metal Processing Equipment: Load torque changes abruptly when the rolling mill bites into steel (e.g., the moment steel is engaged). Vector control responds to torque demands in milliseconds, avoiding steel thickness deviations caused by rolling roll speed fluctuations and improving product qualification rates.
3. Motor Types: Suitable for Motors Requiring “High-Precision Control”
Vector control was originally developed for AC induction motors (to solve their “difficult-to-control torque” issue) and later expanded to permanent magnet synchronous motors (PMSMs) and brushless DC motors (BLDCs). It is particularly well-suited for high-performance control of these motor types.
3.1 AC Induction Motors (Asynchronous Motors)
Induction motors have a simple structure and low cost but suffer from “torque-speed coupling” and “poor low-speed torque.” Traditional V/F control only supports “open-loop speed control,” which cannot meet high-precision needs.
Applicable Scenarios: Use cases where induction motors require “closed-loop torque/speed control,” such as energy-saving speed regulation for industrial fans/pumps (needing precise flow control) and CNC machine tool spindles (needing constant-speed cutting). Vector control breaks down the induction motor’s stator current into “flux component” and “torque component,” achieving control accuracy on par with DC motors.
Applicable Scenarios: Use cases where induction motors require “closed-loop torque/speed control,” such as energy-saving speed regulation for industrial fans/pumps (needing precise flow control) and CNC machine tool spindles (needing constant-speed cutting). Vector control breaks down the induction motor’s stator current into “flux component” and “torque component,” achieving control accuracy on par with DC motors.
3.2 Permanent Magnet Synchronous Motors (PMSMs)/Brushless DC Motors (BLDCs)
These motors offer high efficiency and high torque density but require more accurate control algorithms (especially interior permanent magnet synchronous motors, which have saliency effects). Vector control—particularly “rotor field-oriented control”—can accurately track the motor rotor position, enabling smooth torque output.
Applicable Scenarios: NEV drive motors, servo motors (e.g., robot joints), and precision medical equipment (e.g., ventilator motors). For example, ventilator motors need to maintain constant torque at low speeds and have fast dynamic response (to adapt to changes in a patient’s breathing rhythm). Vector control meets these demands for “low noise, high precision, and fast response.”
Applicable Scenarios: NEV drive motors, servo motors (e.g., robot joints), and precision medical equipment (e.g., ventilator motors). For example, ventilator motors need to maintain constant torque at low speeds and have fast dynamic response (to adapt to changes in a patient’s breathing rhythm). Vector control meets these demands for “low noise, high precision, and fast response.”
4. Scenarios Where Vector Control Is Not Suitable (Reverse Reference)
Vector control is not necessary for all applications. If a system has low control performance requirements and prioritizes cost, traditional control methods (such as V/F control or Direct Torque Control (DTC)) are more appropriate. Examples include:
- Ordinary fans and pumps (only needing simple speed regulation, with no demands for dynamic response or accuracy);
- Small household appliances (e.g., fans, washing machines)—these are cost-sensitive and do not require high-precision torque control;
- Equipment that operates for short periods with stable loads (e.g., small conveyors with no load fluctuations, where V/F control is sufficient).
Summary: Core Application Profile for Vector Control
Vector control is the preferred choice when a system meets 1–2 of the following core conditions:
- Performance Requirements: Need for fast dynamic response (millisecond-level), high steady-state accuracy (speed deviation < 0.5%), and low-speed high torque;
- Load Characteristics: Large load fluctuations, presence of impact loads, or low-speed heavy loads;
- Motor Type: Induction motors requiring closed-loop control, or PMSMs/BLDCs needing high-performance drives.
Typical industrial applications include industrial servo systems, new energy vehicles, precision machining, lifting and transportation, and high-end home appliances (e.g., DD direct-drive motors in high-end washing machines).
