Water Pump Selection Guide: Centrifugal pump vs submersible pump: which one is more suitable for household water supply systems?
When setting up a home water supply system (whether drawing from a well, tank, or municipal line), choosing between a centrifugal pump and a submersible pump depends on your specific needs—like water source depth, installation space, noise tolerance, and maintenance preferences. Below is a detailed comparison to help you decide.
What Are Centrifugal and Submersible Pumps?

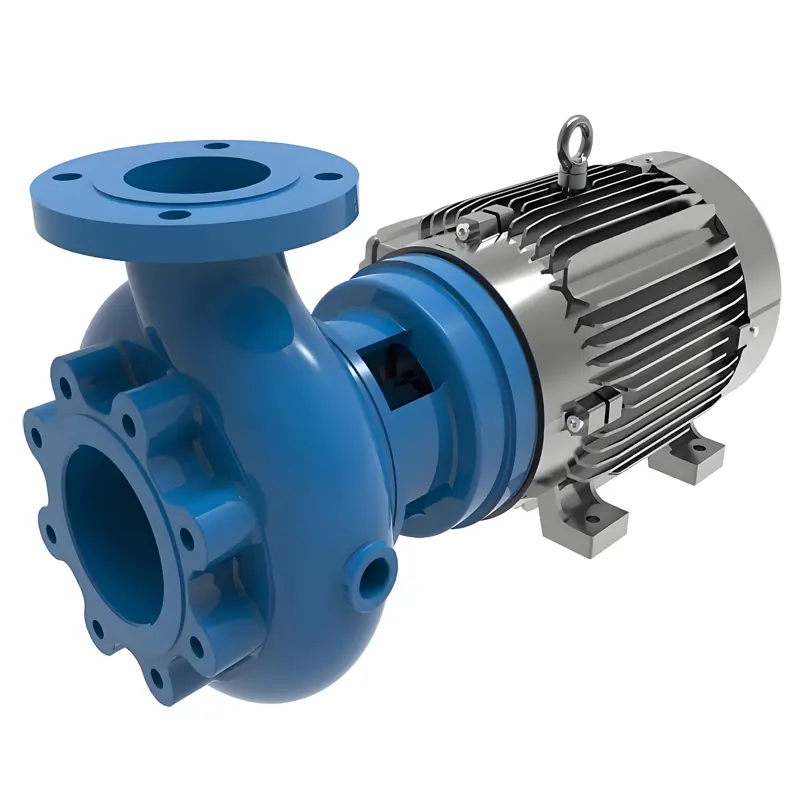

1. Centrifugal Pumps
- Working principle: Installed above ground, they use a rotating impeller to create centrifugal force, drawing water into the pump and pushing it through pipes.
- Key feature: Requires priming (filling the pump and suction pipe with water) to work—they can’t “suck” water from too deep without help.
- Typical use: Shallow water sources (wells ≤7m deep), tanks, or boosting pressure in municipal lines.

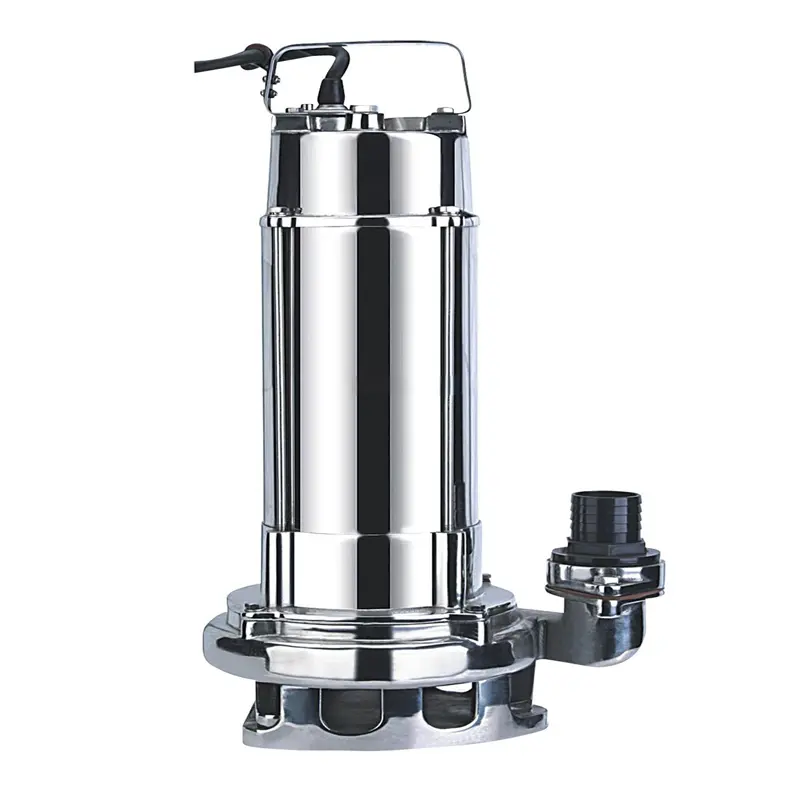

2. Submersible Pumps
- Working principle: Fully submerged in water (e.g., at the bottom of a well or tank), they push water upward using a hermetically sealed motor and impeller.
- Key feature: No priming needed—water surrounds the pump, so it starts instantly.
- Typical use: Deep wells (＞7m), underground tanks, or where space above ground is limited.
Core Comparison: Centrifugal vs. Submersible for Home Use
To simplify your decision, here’s a side-by-side breakdown of key factors for home water supply:
| Factor | Centrifugal Pump | Submersible Pump |
|---|---|---|
| Water Source Depth | Best for shallow sources (≤7m). Limited by “suction lift” (max ~7m, due to atmospheric pressure). | Ideal for deep sources (＞7m). Can handle wells/tanks 10m–100m deep. |
| Installation | Installed above ground (needs a dry, sheltered spot near the water source). Requires a suction pipe from the source to the pump. | Installed underwater (lower part of the well/tank). No need for a separate suction pipe—connected directly to the discharge pipe. |
| Noise Level | Noisier (motor and impeller run above ground; vibrations may echo). | Quieter (submerged in water muffles noise—great for homes where quiet is key). |
| Maintenance | Easier to access (above ground). Repairs (e.g., fixing leaks, replacing impellers) are simpler. | Harder to service (must be pulled out of the well/tank). May require professional help for repairs. |
| Energy Efficiency | Less efficient for deep sources (wastes energy pulling water upward). Efficient for shallow, low-pressure needs. | More efficient for deep sources (pushing water up from underwater uses less energy). |
| Cost | Lower upfront cost (simpler design, no waterproofing). | Higher upfront cost (sealed motor, waterproofing, and installation may add expense). |
| Risk of Cavitation | Higher risk if priming fails or suction lift is too great (air bubbles damage the impeller). | Lower risk (submerged in water, so consistent water flow prevents cavitation). |
| Lifespan | 5–8 years (exposed to air; motor may overheat if run dry). | 8–15 years (water cools the motor; less wear from dust or debris). |
Which Is Better for Most Home Water Supply Systems?
Choose a Centrifugal Pump If:
- Your water source is shallow (e.g., a well ≤7m deep, a ground tank, or you need to boost pressure in a municipal line).
- You prefer easy, DIY maintenance (e.g., cleaning filters or replacing gaskets).
- Budget is a priority (lower upfront costs).
- Noise isn’t a major concern (install it in a garage or utility room to muffle sound).
Choose a Submersible Pump If:
- Your water source is deep (well ＞7m deep) or hard to access (e.g., an underground tank).
- Quiet operation is critical (e.g., the pump is near living spaces).
- You want long-term durability (less risk of overheating or cavitation).
- You don’t mind higher upfront costs for lower long-term energy and repair bills.
Real-World Examples for Home Use
-
Scenario 1: A home with a 5m-deep well in the backyard.
→ A centrifugal pump works here. It’s installed in a shed near the well, costs less, and is easy to fix if it clogs. -
Scenario 2: A home with a 20m-deep well (common in rural areas).
→ A submersible pump is necessary. It handles the depth efficiently, runs quietly, and avoids the cavitation risk a centrifugal pump would face. -
Scenario 3: A home on a municipal line with low water pressure (e.g., showers run weak).
→ A centrifugal booster pump (a type of centrifugal pump) is perfect. It’s installed near the main water line, boosts pressure, and is easy to service.
Common Mistakes to Avoid
- Using a centrifugal pump for deep wells: It will struggle to pull water up, leading to low pressure or failure.
- Ignoring submersible pump cable length: Ensure the power cable is long enough to reach the pump at the bottom of the well.
- Neglecting priming for centrifugal pumps: Forgetting to prime (fill with water) will burn out the motor.
- Overlooking water quality: Submersible pumps are better for dirty water (e.g., wells with sediment) as they’re less likely to clog compared to centrifugal pumps.
Final Verdict
For most urban or suburban homes with shallow water sources (wells ≤7m or tank-based systems), a centrifugal pump is the practical choice—affordable, easy to maintain, and sufficient for typical needs.
For rural homes with deep wells (＞7m) or those prioritizing quiet operation and long-term reliability, a submersible pump is worth the investment.
By matching the pump type to your water source depth and home priorities, you’ll ensure a steady, efficient water supply for daily use.
